HAGEN GroE with 25 years service life
The high productin
quality and extremely low acid densities ensure a long service life of 25
years or more
Power gives us light, heat and comfort. Power is the foundation on which
production and the economy are built.
Normally, electrical energy is always available
everywhere. But when a power failure occurs, everything
comes to a stop. In some installation the break in the
power supply must be bridged immediately. For example
when a power failure occurs in a power station, turbine
controllers are immediately operated, emergency diesel
sets have started up and safely measures and back-up and
safely measures and back-up supplies initiated. This
sudden very high energy demand is met reliably by heavy
duty batteries. Once the emergency diesel sets started
up, the energy supplied by the batteries reduces In the
event of a safety shutdown a power peak again occurs,
which must also be satisfied by batteries. A reliable,
high performance battery system is not just an essential
requirement for power supply utilities. Industrial
plants, hospitals, telecommunications systems airports,
exhibition centres, public and industrial administration
buildings, underground/railway control rooms and many
other facilities depend on the immediate bridging of
power failures. |
 |
|
 |
|
|
|
|
 |
|
 |
|
Emergency lighing, UPS systems swiching
stations, emergency power supplies, alarm systems, signalling and remote
control systems, diesel start-up sets and other important functions must
also be guaranteed even during a power failure. With its GroE Series, HAGEN
supplies a very powerful, reliable and long-lasting battery system. Have a
word with the HAGEN experts about your needs or ask for an analysis of
requirements for the best solution to your individual applications.

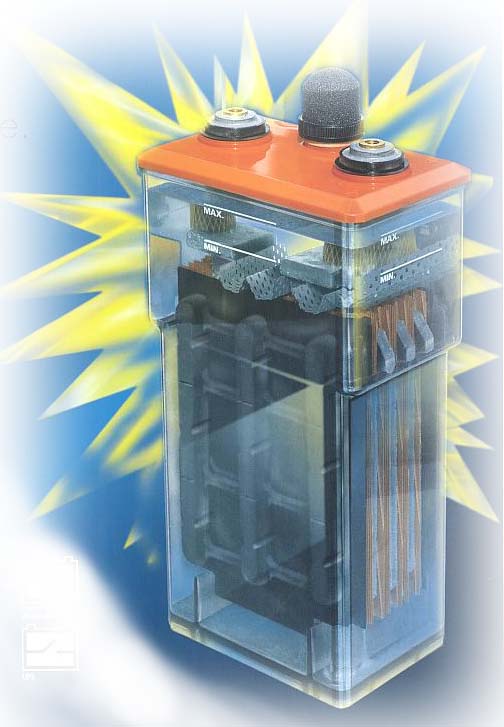

When extreme high-power capabilities are demanded, the right battery
technology is crucial-and HAGEN has it! HAGEN employs special techniques in
the construction of its GroE batteries. Positeve pure-lead, large-format
plates with a laminated structure, pasted negative plates, large electrolyte
reserves and heavy-duty pole and cell connections guarantee an extremely low
internal resistance and the best high-power properties. Short and long
charging times can be used reliably and safely with a high, stable voltage.
The lock of antimony in the positive plate of HAGEN GroE batteries gives
them low-maintenance properties. Transporent cell containers in SAN plastic
make inpection and maintenance very easy and there is only slight water
consumption.
A good charging
characteristic enables full charging over a short period with a low charging
voltage (5-6 hous at 2.25 V/C). Equalising or fast charging is seldem
required and self-discharge is low. The high production quality and the
extremely low acid densities ensure a long sevice life of 25 years or more.
HAGEN GroE batteries are available in a carefully selected, graduated power
range with capacities from 50-2600 Ah. The case diminsions confrom to DIN,
British Standard (GS) and other international standards. |
 |
|
 |
|
|
|
|
|
|
|
|
