Sonnenschein A400 range overview |
|
|
|
Design life in years:
12
|
Capacity range:
5,5 - 180Ah.
|
Block battery
|
Grid plate
|
|
Valve regulated lead-acid
|
Recycleable
|
Proof against deep discharge acc. to DIN 43539 T5
|
Maintenance free
|
|
Outstandig cost efficiency

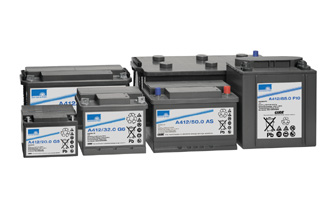

Sonnenschein A400 batteries are extremely powerful and
reliable. This superior product range perfectly fulfils the
requirements for many different applications including
telecommunications, industrial and alarm applications. The
success of this product comes from the internationally
experienced dryfit technology.Compared with conventional
liquid electrolyte batteries, the Sonnenschein A400 range
has the distinct advantage that the electrolyte is fixed in
gel which makes it completely free from maintenance. Battery
rooms with their associated equipment are no longer required
for most applications. The A400 range is worldwide
recognized as an environmentally friendly battery system.
The batteries offer remarkable cost efficiencies (30% less
overhead cost compared to conventional batteries) and ease
of handling. 10 years service life, totally recyclable and a
shelf life for up to 2 years at 20°C without a recharge
makes the A 400 range unmatched by any other system.
A400 Specifications:
-
Exceptional energy storage capacity combined with long
life
-
Absolutely maintenance-free during the whole service
life due to the Sonnenschein gel
technology
-
Nominal capacity 5,5 — 180 Ah
-
Design life in years: 10 (at 20°C ambient temperature
(80% remaining capacity))
-
Grid plate construction consisting of a lead calcium
alloy
-
Very low gassing due to internal gas recombination
-
Long shelf life of up to 2 years at 20° C due to very
low self-discharge rate
-
Proof against deep discharge according to DIN 43539 T5
-
Trouble-free transportation of operational blocks,
no restrictions for air, rail and sea transportation
(IATA, DGR clause A 67)
-
Completely recyclable
|
|
|
Type overview
Click on one of the types to
achieve more detailed information
Type
|
Meets
|
Nom. Volt
V
|
C10
1.8 VpC 20°
|
|
W..
mm
|
H..
mm
|
Wt.
kg.
|
A412/5,5 SR |
UL94 HB |
12
|
5
|
152
|
65,5
|
94,5
|
2,5
|
A412/8,5 SR |
UL94 HB |
12
|
8,5
|
152
|
98
|
94,5
|
3,6
|
A412/12 SR |
UL94 HB |
12
|
12
|
181
|
76
|
152
|
5,6
|
A412/20 G5 |
UL94 HB |
12
|
20
|
176
|
167
|
126
|
8,5
|
A412/32 G6 |
UL94 HB |
12
|
32
|
210
|
175
|
175
|
13,6
|
A412/32 F10 |
UL94 HB |
12
|
32
|
210
|
175
|
175
|
14,1
|
A412/50 G6 |
UL94 HB |
12
|
50
|
278
|
175
|
190
|
19,5
|
A412/50 A |
UL94 HB |
12
|
50
|
278
|
175
|
190
|
19,5
|
A412/50 F10 |
UL94 HB |
12
|
50
|
278
|
175
|
190
|
20,0
|
A412/65 G6 |
UL94 HB |
12
|
65
|
353
|
175
|
190
|
24,6
|
A412/65 F10 |
UL94 HB |
12
|
65
|
353
|
175
|
190
|
25,1
|
A412/85 F10 |
UL94 HB |
12
|
85
|
204
|
244
|
250
|
32,0
|
A412/90 A |
UL94 HB |
12
|
90
|
284
|
267
|
208
|
34,5
|
A412/90 F10 |
UL94 HB |
12
|
90
|
284
|
267
|
208
|
35,0
|
A412/100 A |
UL94 HB |
12
|
100
|
513
|
189
|
195
|
39,5
|
A412/100 F10 |
UL94 HB |
12
|
100
|
513
|
189
|
195
|
40,0
|
A412/120 A |
UL94 HB |
12
|
120
|
513
|
223
|
195
|
48,5
|
A412/120 F10 |
UL94 HB |
12
|
120
|
513
|
223
|
195
|
49,0
|
A406/165 A |
UL94 HB |
6
|
165
|
244
|
190
|
253
|
31,0
|
A406/165 F10 |
UL94 HB |
6
|
165
|
244
|
190
|
253
|
31,5
|
A412/180 F10 |
UL94 HB |
12
|
180
|
518
|
291
|
216
|
70,0
|
A412/180 A |
UL94 HB |
12
|
180
|
518
|
291
|
216
|
69,5
|
|
|
|
|
|
|
|
|
